Tie Rod Disassembly Note

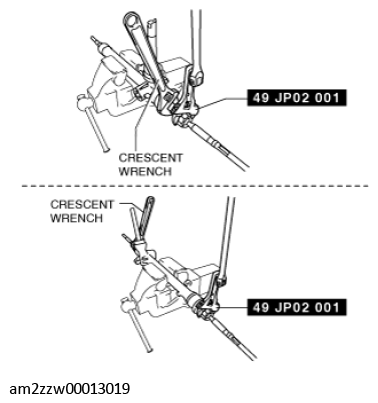

  1. Lock the steering rack end (pinion gear side) against rotation using a crescent wrench and remove the tie rod using the SST.
    G11438047Courtesy of MAZDA MOTORS CORP.
