Front Outer Handle Removal/Installation: Notes

NOTE:

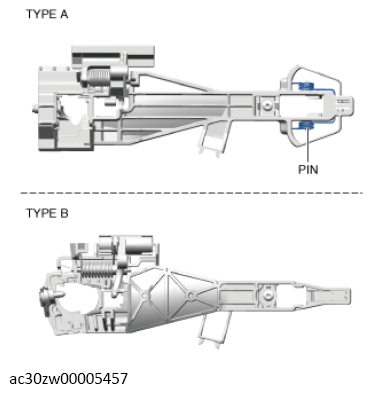

• The type of the front outer handle can be identified by its shape.
  • Type A With pin (See TYPE A .)
  • Type B No pin (See TYPE B .)

Courtesy of MAZDA MOTORS CORP.
