Rear Console Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

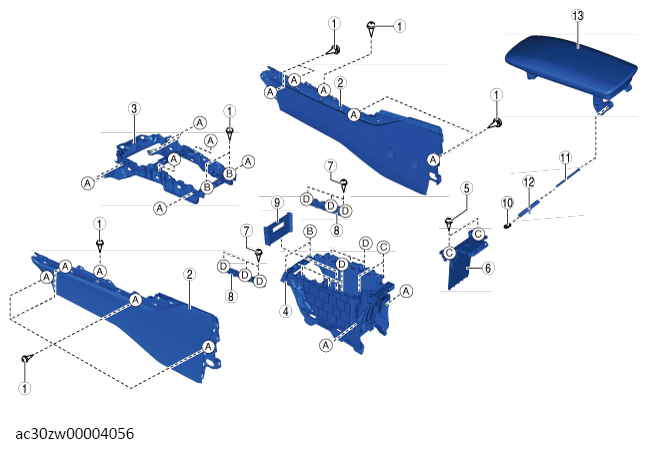

    G13750408Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Screw
    2 Console panel
    (See Console Panel Removal Note .)
    3 Rear console bracket
    4 Rear console box
    5 Screw
    6 Rear console parts
    7 Screw
    8 Bracket cover
    9 Plate
    10 Stopper
    11 Pin
    12 Spring
    13 Rear console lid
  2. Assemble in the reverse order of disassembly.
