Parking Sensor Switch Inspection

NOTE:
  • The parking sensor switch is integrated with the cluster switch.

Continuity Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION ).
  3. Verify that the continuity between the cluster switch terminals is as indicated in the table.
G12190021Courtesy of MAZDA MOTORS CORP.
G12190022Courtesy of MAZDA MOTORS CORP.

LED Illumination Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION ).

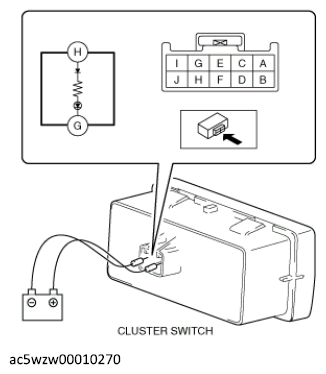

  3. Apply battery voltage to cluster switch terminal H, and connect terminal G to ground.
  4. Verify that the LED is turned on.
G12190023Courtesy of MAZDA MOTORS CORP.
