Mazda Modular Diagnostic System (M-MDS)

• The M-MDS is an on-board diagnostic tool developed for the improvement of servicing efficiency, maintenance quality, and convenience, and the reduction of security risk.

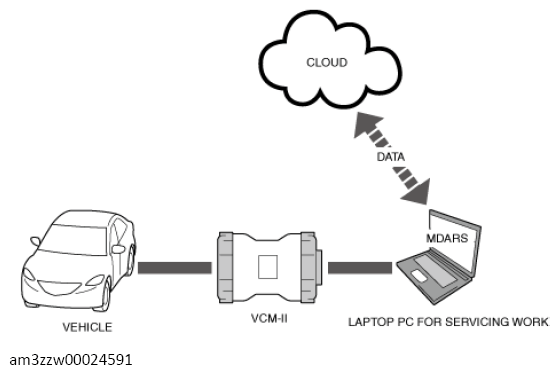

• The M-MDS consists of a laptop PC for servicing work, the Mazda Diagnostic and Repair Software (MDARS) on-board diagnostic software, the VCM- used as a communication device between the vehicle and the laptop PC for servicing work, and each type of cable.

Courtesy of MAZDA MOTORS CORP.

• With the MDARS, cloud technology is introduced for the storage of diagnosis history performed using applications (software for controlling on-board diagnosis function) or the MDARS, and data recorded by the PID/data monitor function.
