No. 2 Check Engine Light Illuminates: Notes
NO. 2 CHECK ENGINE LIGHT ILLUMINATES (SKYACTIV-G 2.5, VIN M) DESCRIPTION AND POSSIBLE CAUSE
| 2 |
CHECK ENGINE LIGHT ILLUMINATES |
| DESCRIPTION |
- Check engine light illuminates incorrectly.
NOTE:
- If there is a malfunction in the engine system, the PCM stores a DTC and illuminates the check engine light.
|
| POSSIBLE CAUSE |
- Emission system malfunction (DTC is stored in PCM)

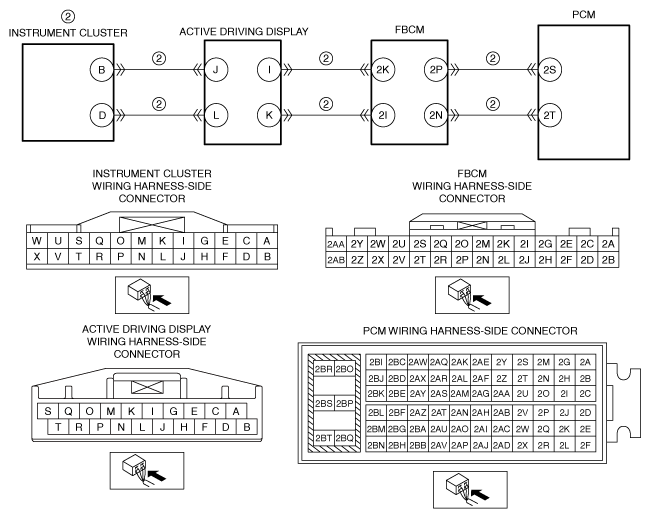

- Short or open circuit in wiring harness between the following terminals:
- Instrument cluster terminal B-Active driving display terminal J
- Instrument cluster terminal D-Active driving display terminal L
- Active driving display terminal I-Front body control module (FBCM) terminal 2K
- Active driving display terminal K-Front body control module (FBCM) terminal 2I
- Front body control module (FBCM) terminal 2P-PCM terminal 2S
- Front body control module (FBCM) terminal 2N-PCM terminal 2T
- Instrument cluster malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
