Refrigerant Charging: Notes
WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not use a different type of refrigerant or charge beyond the specified level. Otherwise, cooling ability will be lowered and the A/C compressor could be damaged.
NOTE:

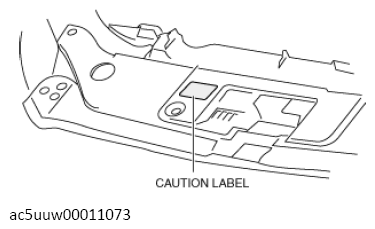

- When draining or adding the refrigerant, verify the appropriate refrigerant type and specified amount of refrigerant from the caution label.
REFRIGERANT CHARGING DESCRIPTION
| Engine type | Refrigerant type | Regular amount of refrigerant (approx. quantity) (g {OZ}) |
|---|---|---|
| (VIN M) | HFC-134a (R-134a) | 465-515 {16.5-18.1} |
| HFO-1234yf (R-1234yf) | 475-525 {16.8-18.5} | |
| (VIN Y) | HFC-134a (R-134a) | 465-515 {16.5-18.1} |
| HFO-1234yf (R-1234yf) | 475-525 {16.8-18.5} |
