Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Partially peel back the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  3. Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)

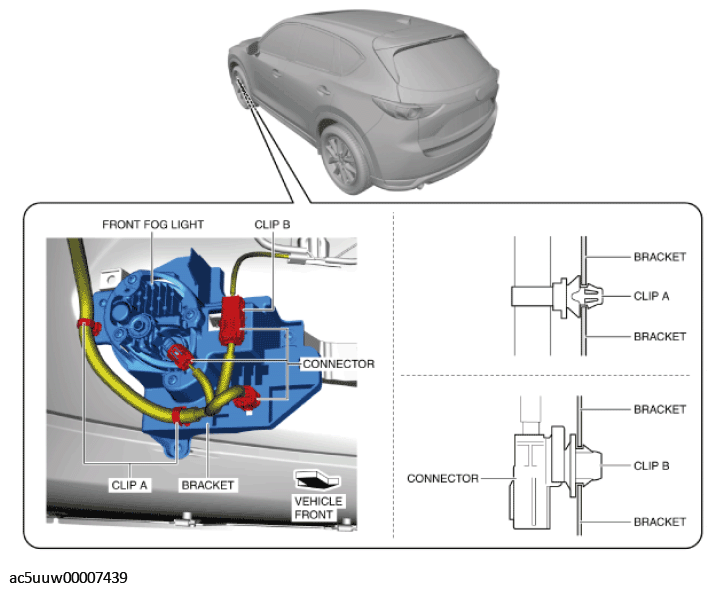

  4. Disconnect the connectors.
    G11428098Courtesy of MAZDA MOTORS CORP.
  5. Remove the clips.

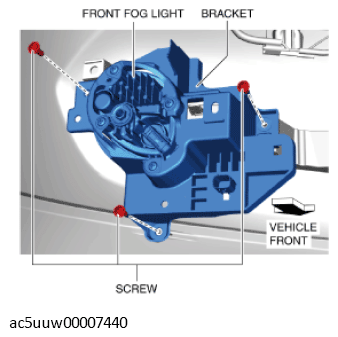

  6. Remove the screws.
    G11428099Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When removing the front fog light from the front bumper, the front fog light may fall off and be damaged. Remove the front fog light from the front bumper while holding the front fog light on the lens side by hand.
  7. Remove the front fog light and the bracket as a single unit.

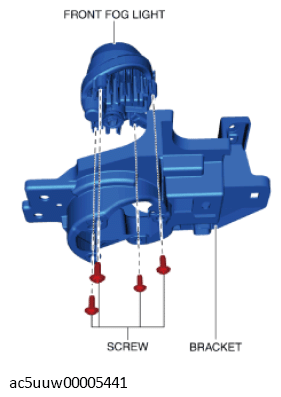

  8. Remove the screws.
    G11428100Courtesy of MAZDA MOTORS CORP.
  9. Remove the front fog light from the bracket.
  10. Install in the reverse order of removal.
  11. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)
