Rear Turn Light Bulb Removal/Installation: Notes

WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

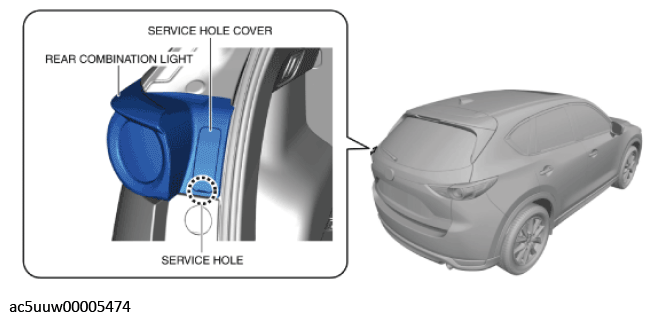

Insert the remover tool into the service hole at the position shown in the figure.

Courtesy of MAZDA MOTORS CORP.

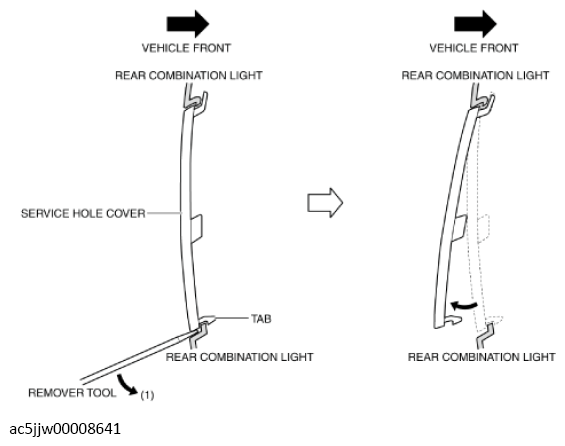

Move the remover tool in the direction of arrow (1) shown in the figure and pull out the service hole cover tab from the rear combination light.

Courtesy of MAZDA MOTORS CORP.
Remove the service hole cover.

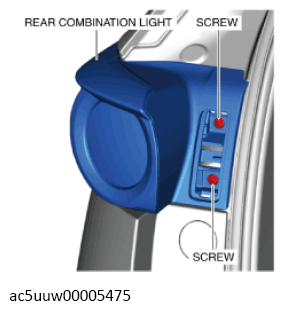

Remove the screws. (See Screw Installation Note .)

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.

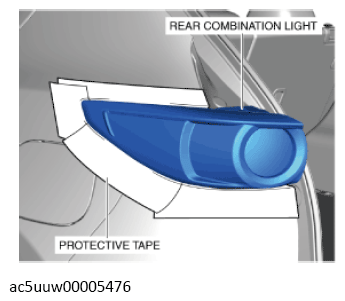

To prevent scratches or damage, affix protective tape to the position shown in the figure.

Courtesy of MAZDA MOTORS CORP.

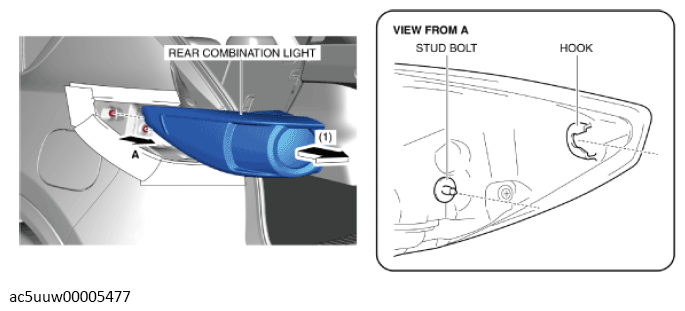

Pull the rear combination light in the direction of arrow (1) shown in the figure and pull out the rear combination light from the body.

Courtesy of MAZDA MOTORS CORP.

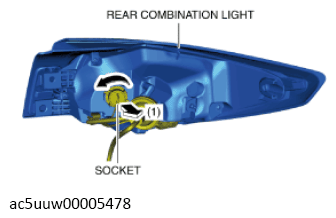

Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).
Remove the rear turn light bulb.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
