Electrical System: Fuse: Replacement

• When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse malfunctions again, the circuit probably has a short and the wiring should be inspected.
• Be sure the negative battery terminal is disconnected before replacing a main fuse.

SKYACTIV-G 2.5

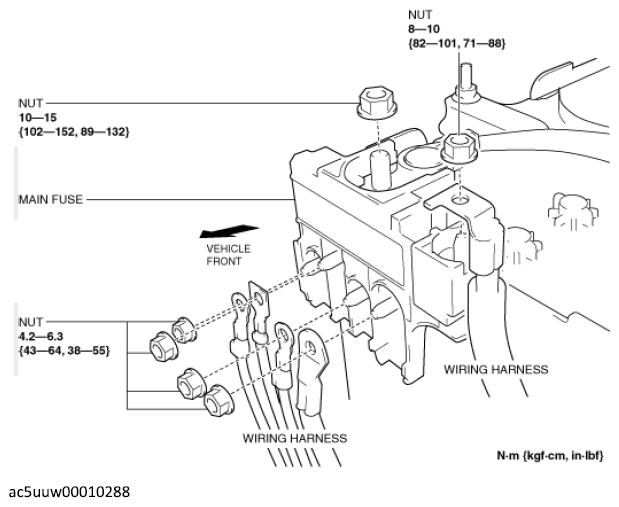

Fig 1: Main Fuse, Wiring Harness And Nuts With Torque Specification (SKYACTIV-G 2.5)

Courtesy of MAZDA MOTORS CORP.

SKYACTIV-G 2.5T

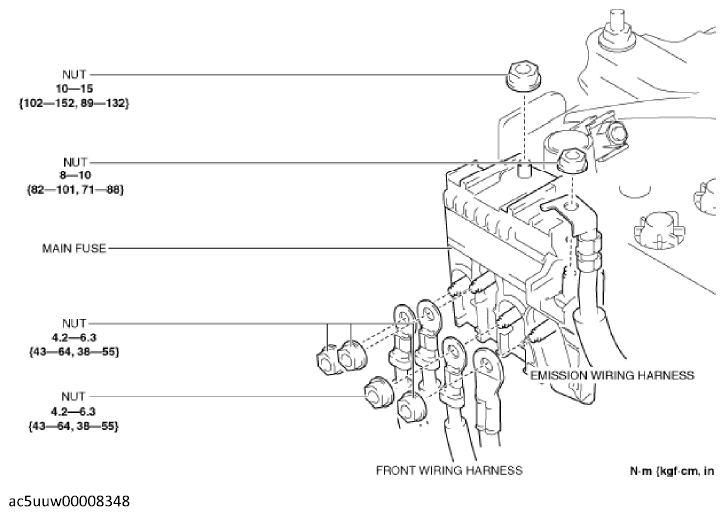

Fig 2: Main Fuse, Wiring Harness And Nuts With Torque Specification (SKYACTIV-G 2.5T)

Courtesy of MAZDA MOTORS CORP.

SKYACTIV-D 2.2

Fig 3: Main Fuse, Wiring Harness And Nuts With Torque Specification (SKYACTIV-D 2.2)

Courtesy of MAZDA MOTORS CORP.

• When replacing a pullout fuse, use the fuse puller.

Courtesy of MAZDA MOTORS CORP.
