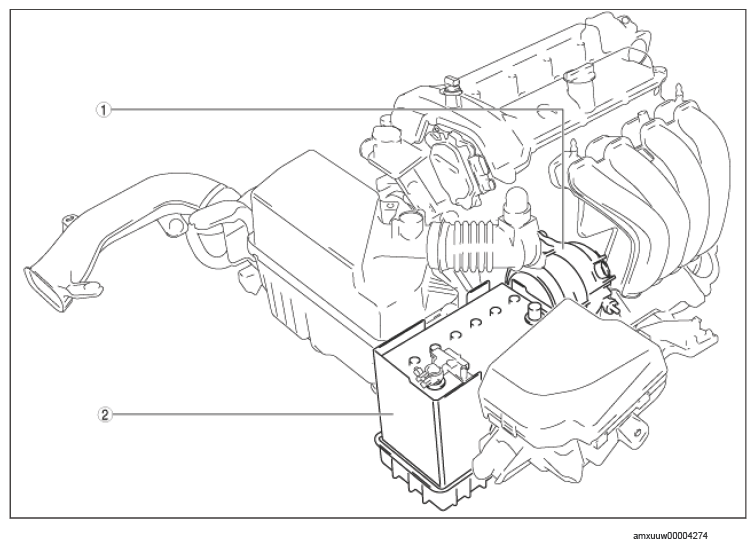

Charging System Location Index

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component no.	Refer to
1	Generator (See GENERATOR REMOVAL/INSTALLATION .) See GENERATOR INSPECTION .) (See GENERATOR DISASSEMBLY/ASSEMBLY .)
2	Battery (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) See BATTERY REMOVAL/INSTALLATION .) See BATTERY INSPECTION .) (See BATTERY RECHARGING .)
