Rectifier (Using An Analog Circuit Tester)

Inspect for continuity of the diodes using an analog circuit tester.

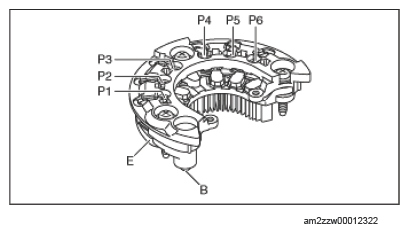

G14588402

Courtesy of MAZDA MOTORS CORP.

If not as specified, replace the rectifier.

CONTINUITY CIRCUIT SPECIFICATION

Analog circuit tester		Continuity
Negative	Positive	Continuity
E	P1, P2, P3, P4, P5, P6	Yes
B	P1, P2, P3, P4, P5, P6	No
P1, P2, P3, P4, P5, P6	E	No
P1, P2, P3, P4, P5, P6	B	Yes
