KS Installation Note

Verify that there is no foreign matter caught between the KS unit and cylinder block.

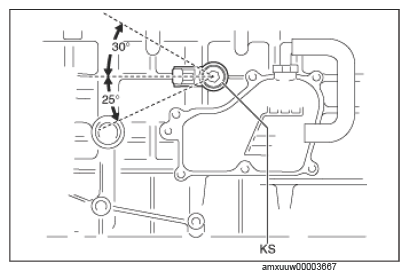

The direction of the KS connector is within the angle range shown in the illustration.

G14588487

Courtesy of MAZDA MOTORS CORP.
