Inspection Using An Oscilloscope (Reference)
›
A/F Sensor Heater Control Signal

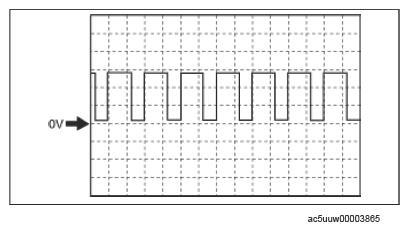

A/F Sensor Heater Control Signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1CB (+)-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
