Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›

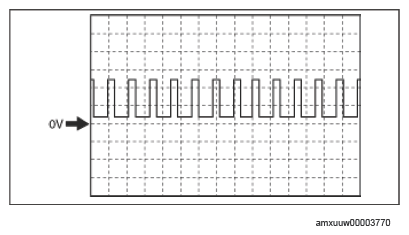

Cooling Fan Control Signal
Cooling Fan Control Signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
2I (+)-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up and no load)
