Inspection Using An Oscilloscope (Reference)
›
HO2S Heater Control Signal

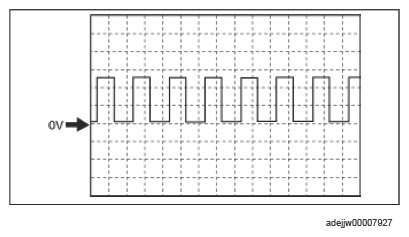

HO2S Heater Control Signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
2BJ (+)-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 50 ms/DIV (X), DC range
Vehicle condition
Idle (immediately after starting engine)
