Purge Control

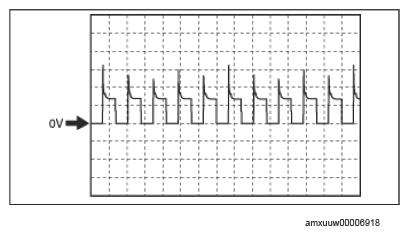

Purge Control
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1AW (+)-body ground (-)
Oscilloscope setting
10 V/DIV (Y), 50 ms/DIV (X), DC range
Vehicle condition
Racing (Engine speed: 2, 000 RPM)
