Brake Pipe Installation Note

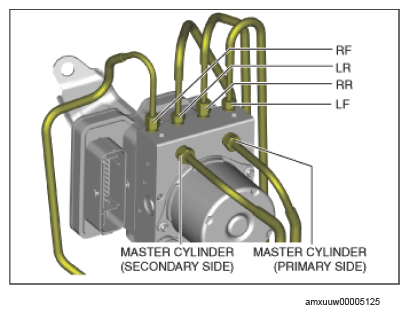

Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the illustration.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
