Generator Disassembly/Assembly: Notes

Assemble in the reverse order of disassembly.

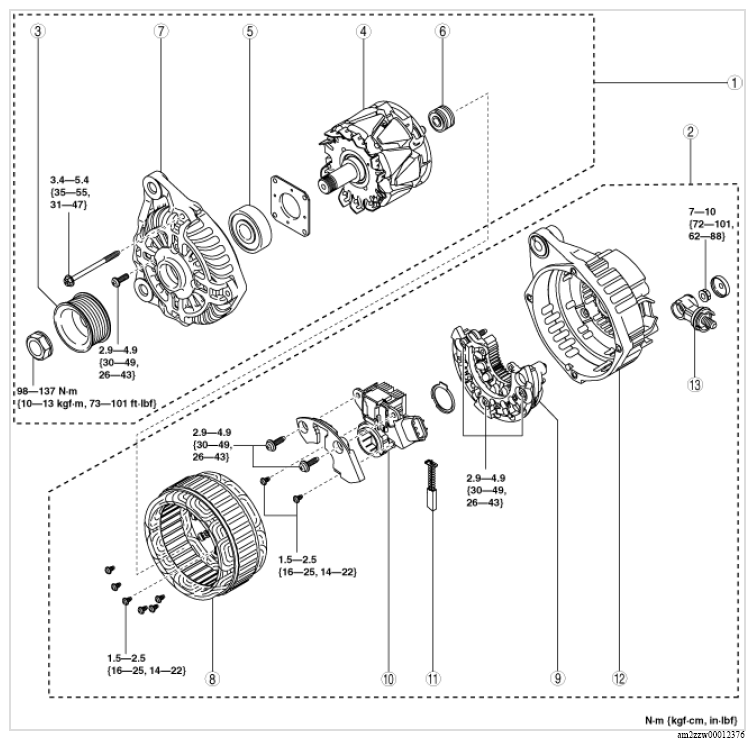

Fig 1: Generator Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component no.	Refer to
1	Rotor component
2	Stator coil component
3	Pulley
4	Rotor
5	Front bearing
6	Rear bearing
7	Front cover
8	Stator coil
9	Rectifier
10	Brush holder
11	Brush (See BRUSH DISASSEMBLY NOTE .) (See BRUSH ASSEMBLY NOTE .)
12	Rear cover
13	Terminal B component
