Audio Control Unit (ACU) Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

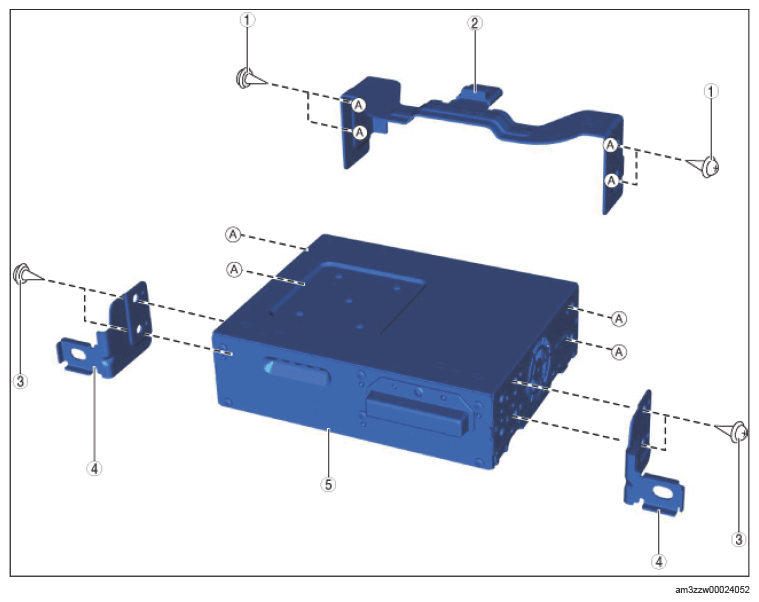

    G14584331Courtesy of MAZDA MOTORS CORP.
    AUDIO CONTROL UNIT COMPONENT OPERATIONS

    Component No. Refer to
    1 Screw
    2 Bracket A
    3 Screw
    4 Bracket B
    5 ACU
  2. Assemble in the reverse order of disassembly.
