Charging System Location Index (VIN Y)

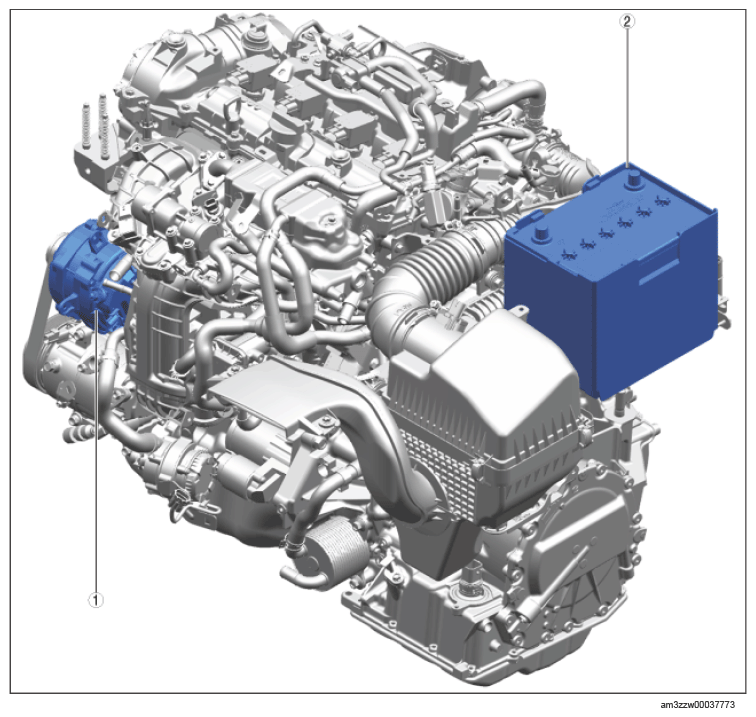

Fig 1: Charging System Components Location - VIN Y (US)

Courtesy of MAZDA MOTORS CORP.

CHARGING SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Generator (See GENERATOR REMOVAL/INSTALLATION (VIN Y) .) (See GENERATOR INSPECTION (VIN Y) .) (See GENERATOR DISASSEMBLY/ASSEMBLY (VIN Y) .)
2	Battery (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .) (See BATTERY REMOVAL/INSTALLATION (VIN Y) .) (See BATTERY INSPECTION [(US)] .) (See BATTERY RECHARGING [(US)] .)
