Emergency Call Unit Removal/Installation

  1. Disconnect the negative battery terminal.
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    6. Passenger-side lower panel
  3. Remove the bolts.

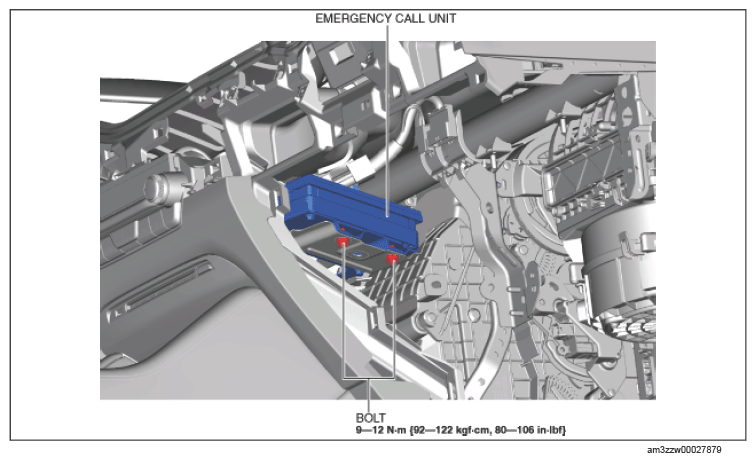

    Fig 1: Emergency Call Unit Bolts With Torque Specification
    G15735616Courtesy of MAZDA MOTORS CORP.

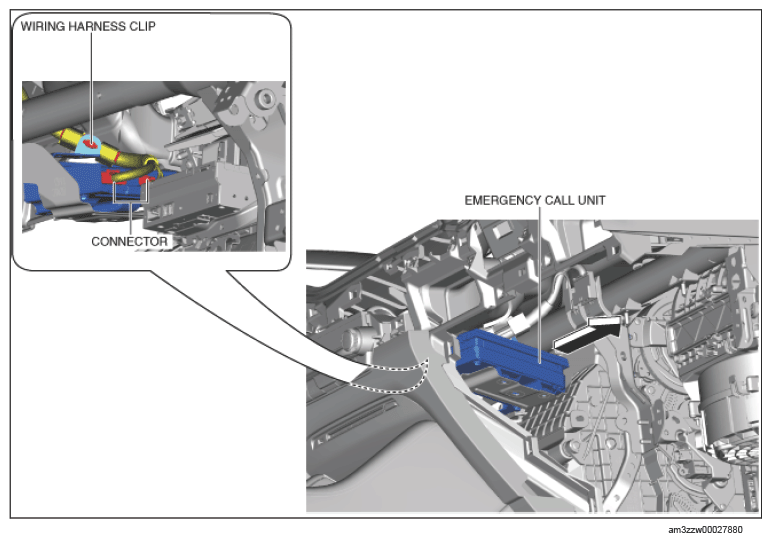

  4. Move the emergency call unit in the direction of the arrow shown in the figure below.
    G15735617Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connectors.
  6. Remove the wiring harness clip.
  7. Remove the emergency call unit.
  8. Remove the bolts.

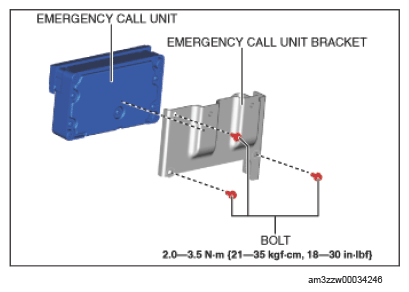

    Fig 2: Emergency Call Unit Bracket Bolts With Torque Specification
    G15735618Courtesy of MAZDA MOTORS CORP.
  9. Remove the emergency call unit from the emergency call unit bracket.
  10. Install in the reverse order of removal.
  11. If the emergency call unit is replaced, perform the following procedure.
    1. Switch the ignition ON (engine off) to complete the global central configuration (GCC) for the emergency call unit.
    2. Switch the ignition OFF.
    3. Perform the emergency call unit finalization procedure. (See EMERGENCY CALL UNIT FINALIZATION PROCEDURE .)
