KS Installation Note

Verify that there is no foreign matter caught between the KS unit and cylinder block.

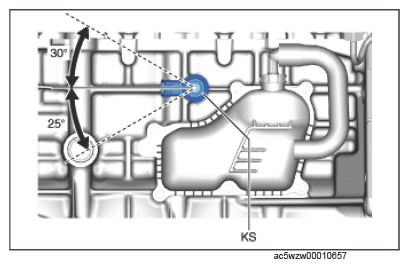

The direction of the KS connector is within the angle range shown in the figure below.

G14580017

Courtesy of MAZDA MOTORS CORP.
