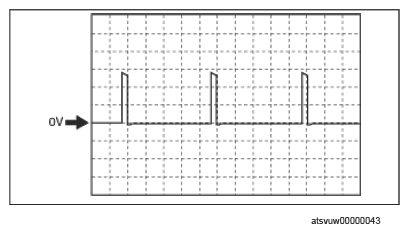

Engine oil control signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1CK (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up

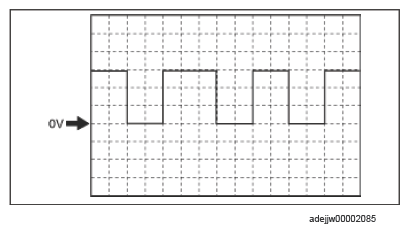

EGR valve (-)

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1CN (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 400 us//DIV (X), DC range

Vehicle condition

• Idle (after warm up)
