Engine Compartment Side

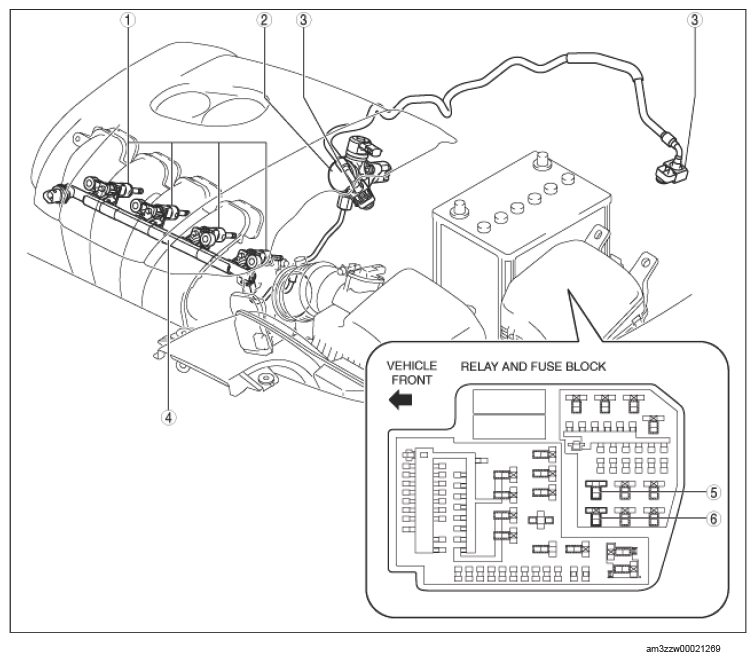

Fig 1: Fuel System Components Location - Engine Compartment Side (SKYACTIV-G - VIN M)

Courtesy of MAZDA MOTORS CORP.

FUEL SYSTEM COMPONENT OPERATIONS

Component No:	Refer to
1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION .) (See FUEL INJECTOR INSPECTION .)
2	High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT EGR COOLER)] .) (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITH EGR COOLER)] .) (See HIGH PRESSURE FUEL PUMP INSPECTION .)
3	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION .)
4	Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION .)
5	Sub relay (See RELAY INSPECTION .)
6	Fuel pump relay (See RELAY INSPECTION .)
