Symptom Troubleshooting - Engine (VIN Y)
›

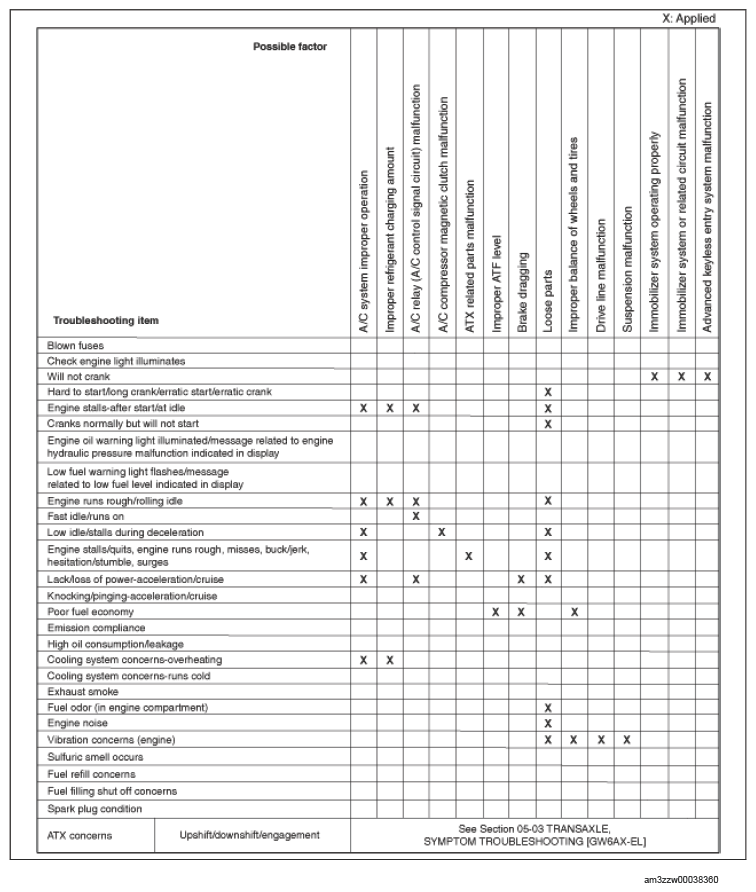

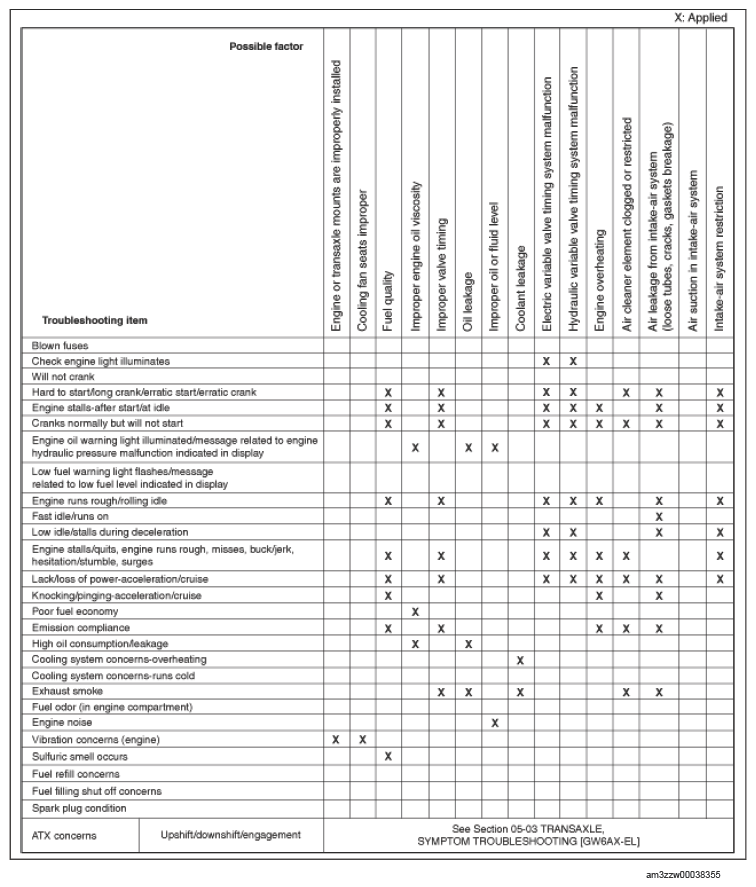

Quick Diagnostic Chart
Quick Diagnostic Chart

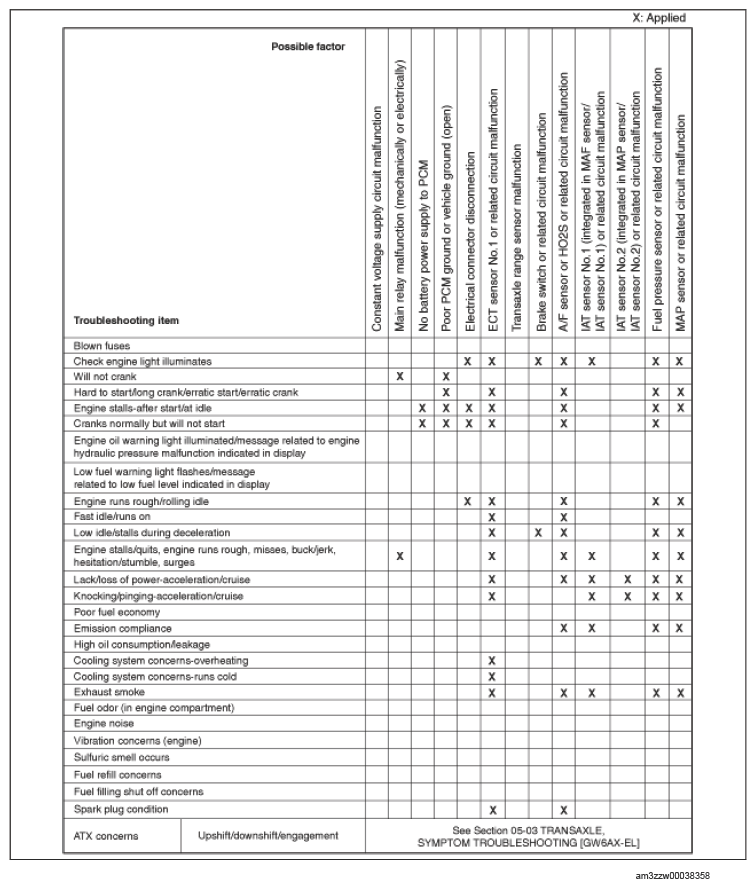

Courtesy of MAZDA MOTORS CORP.

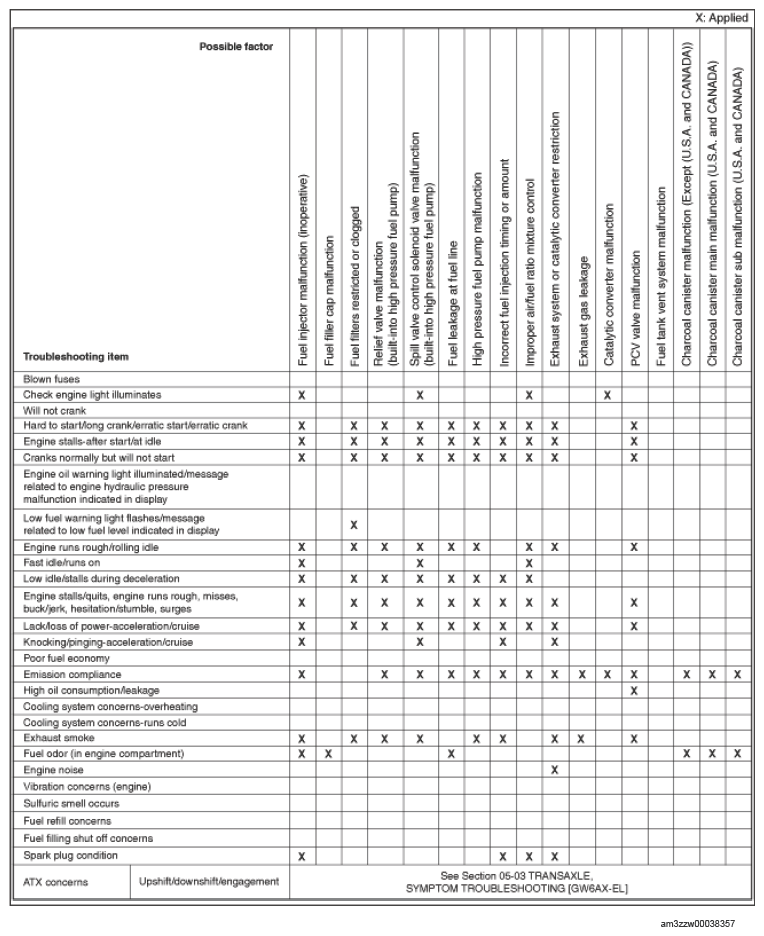

Courtesy of MAZDA MOTORS CORP.

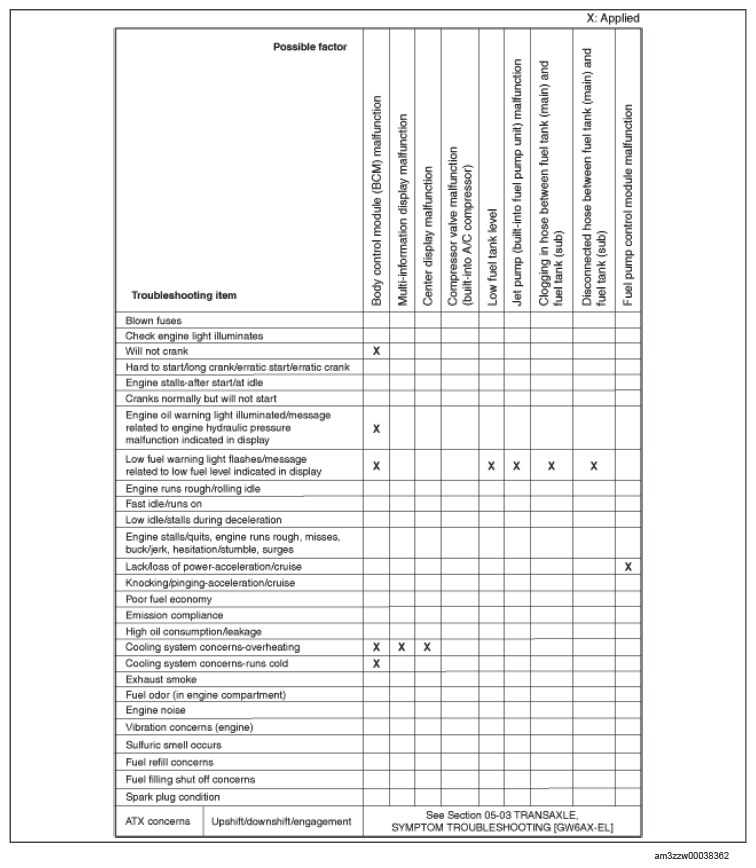

Courtesy of MAZDA MOTORS CORP.

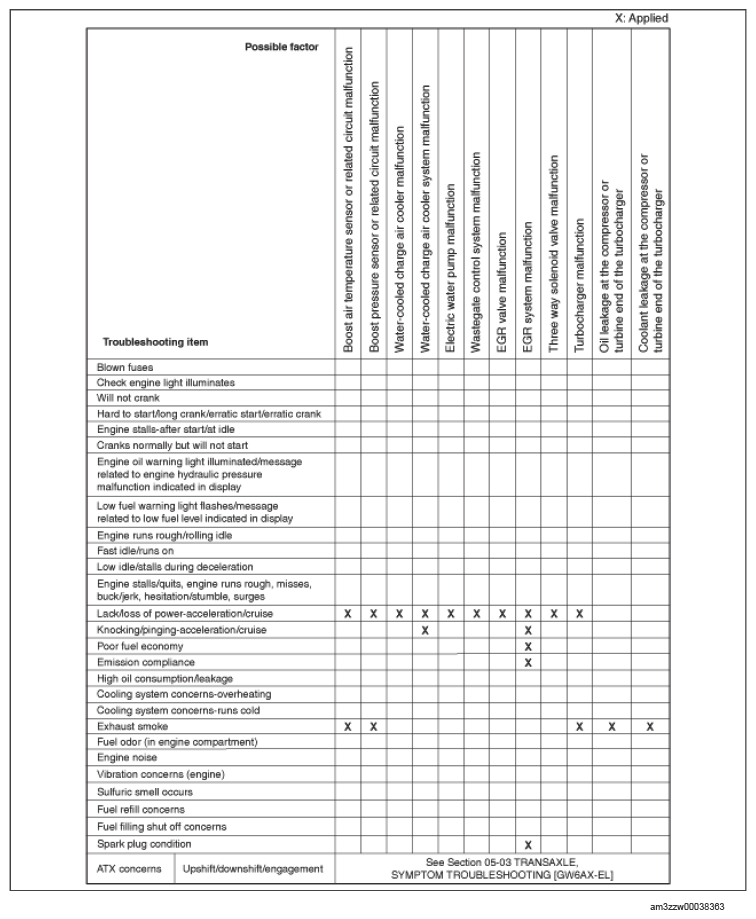

Courtesy of MAZDA MOTORS CORP.

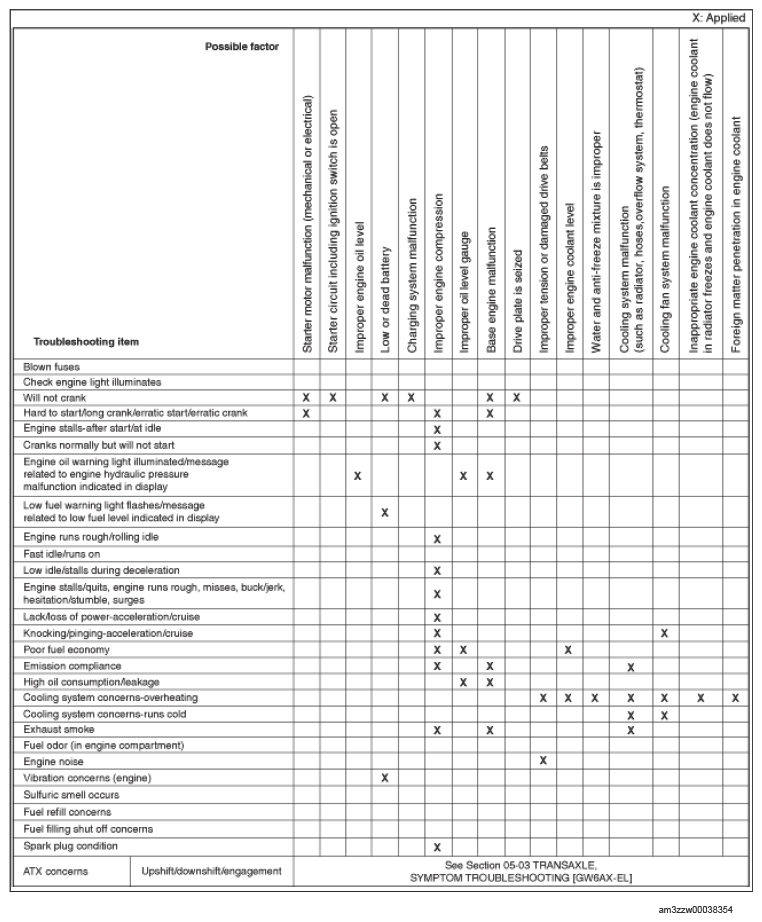

Courtesy of MAZDA MOTORS CORP.

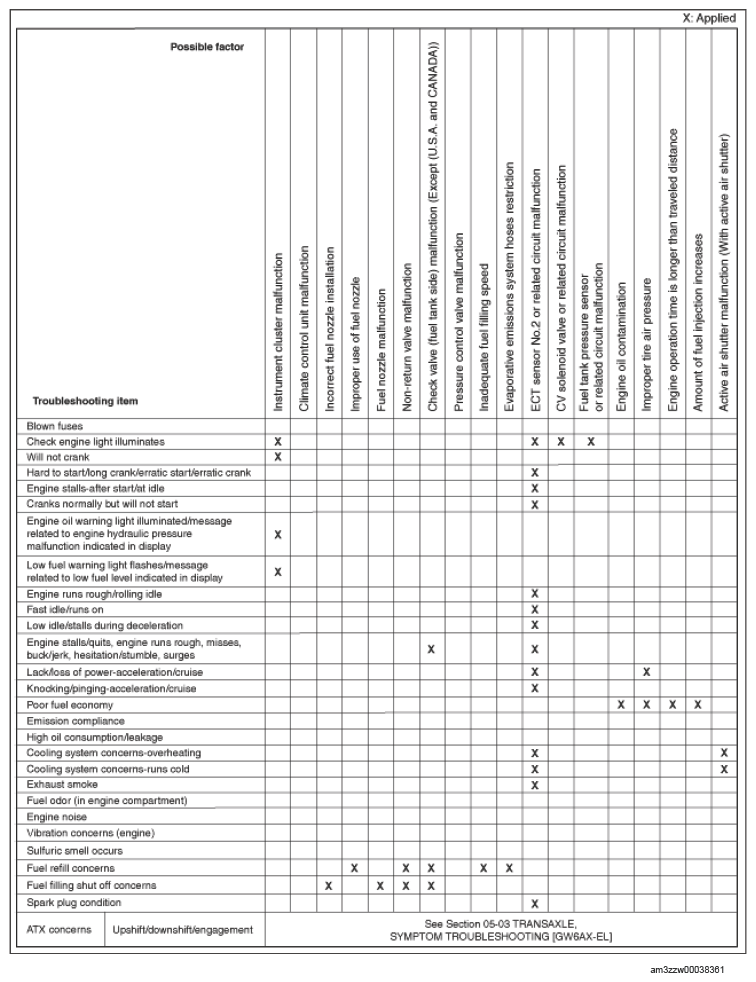

Courtesy of MAZDA MOTORS CORP.

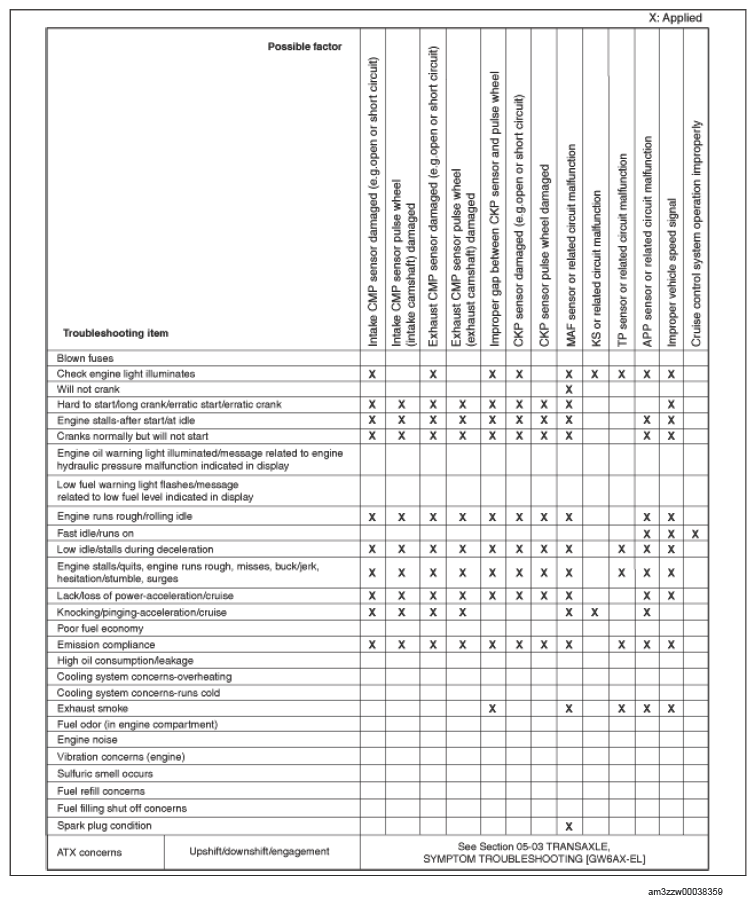

Courtesy of MAZDA MOTORS CORP.

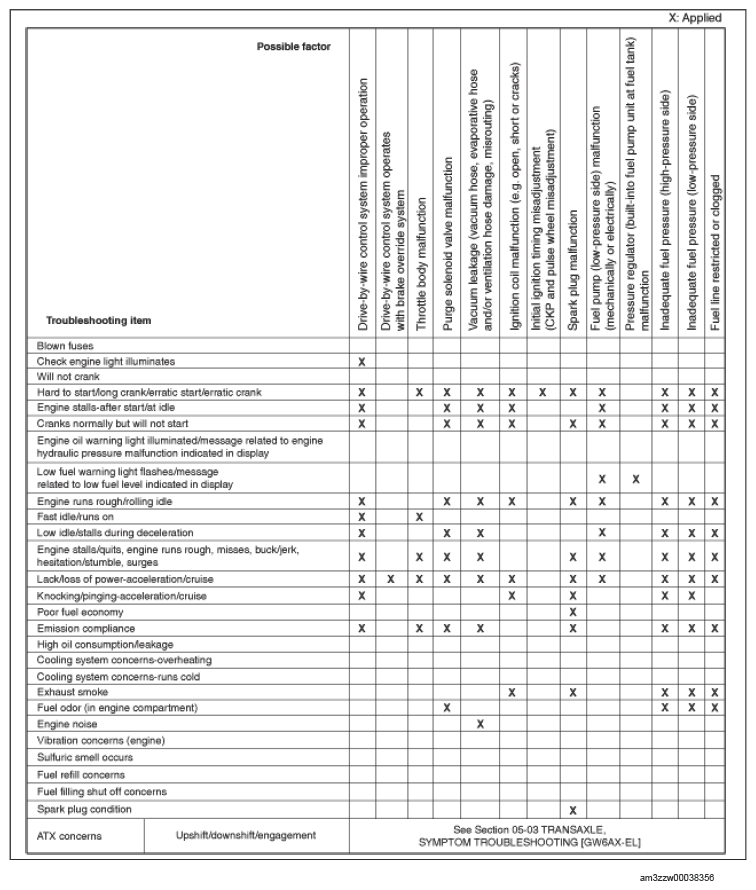

Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
