Transfer Location Index [EV6AX-El]

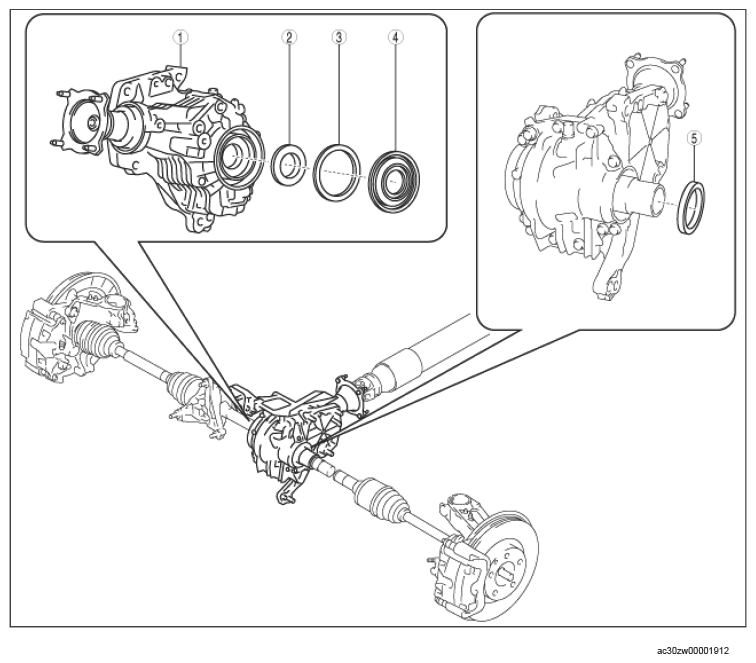

Fig 1: Transfer Components Location (EV6AX-EL)

Courtesy of MAZDA MOTORS CORP.

TRANSFER COMPONENT OPERATIONS

Component No.	Refer to
1	Transfer (See TRANSFER OIL INSPECTION [EV6AX-EL] .) (See TRANSFER OIL REPLACEMENT [EV6AX-EL] .) (See TRANSFER REMOVAL/INSTALLATION [EV6AX-EL] .)
2	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [EV6AX-EL] .)
3	Transfer oil seal (RH) No. 2 (See TRANSFER OIL SEAL REPLACEMENT [EV6AX-EL] .)
4	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [EV6AX-EL] .)
5	Transfer oil seal (LH) (See TRANSFER OIL SEAL REPLACEMENT [EV6AX-EL] .)
