Bracket Installation Note

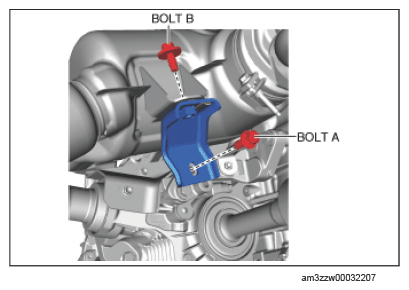

Install the bracket to the exhaust manifold (WU-TWC) and temporarily tighten bolts A and B.

Courtesy of MAZDA MOTORS CORP.
Completely tighten the bolts in the order of A and B.
