Active driving display setting

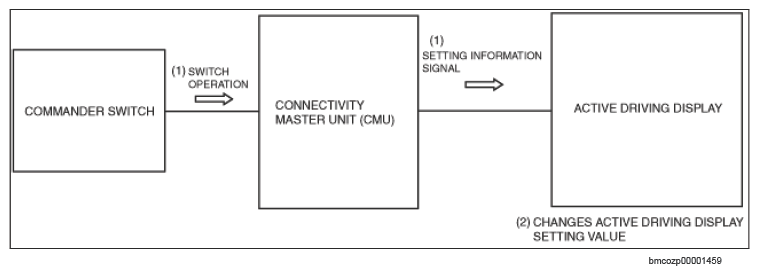

  1. When an operation signal is received/switch operation is detected (1), the CMU sends (1) a setting information signal to the active driving display based on the information from the user operations.
  2. The active driving display changes (2) the setting value of the active driving display based on the setting information signal.
G15668401Courtesy of MAZDA MOTORS CORP.
