Touch Sensor Inspection
NOTE:
- The integrity of the touch sensor cannot be determined from a single part. When inspecting the touch sensor, perform the following procedure.
- Connect the M-MDS to the DLC-2.
- Perform the DTC inspection for the BCM. (See DTC INSPECTION
.)
- If DTCs are detected, repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [BODY CONTROL MODULE (BCM) (US)] .)
- If DTCs are not detected, go to the next step.
- Select the following PID and simulation items using the M-MDS. (See PID/DATA MONITOR INSPECTION
.) (See SIMULATION INSPECTION
.)
- TOUCH_SEN_LCK_L/F
- TOUCH_SEN_ULCK_L/F
- TOUCH_SEN_LCK_R/F
- TOUCH_SEN_ULCK_R/F
- Turn the simulation item on.

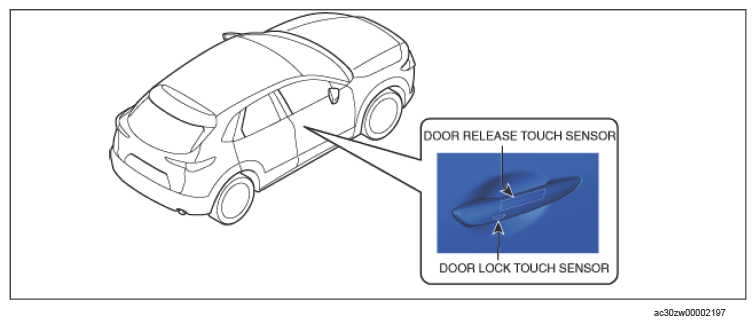

- Touch the touch sensor and verify that the PID values change as follows.
LH
| Test condition | Data contents | |
|---|---|---|
| TOUCH_SEN_LCK_L/F | TOUCH_SEN_ULCK_L/F | |
| Door lock touch sensor is touched | On | Off |
| Door release touch sensor is touched | Off | On |
| Except above | Off | Off |
RH
| Test condition | Data contents | |
|---|---|---|
| TOUCH_SEN_LCK_R/F | TOUCH_SEN_ULCK_R/F | |
| Door lock touch sensor is touched | On | Off |
| Door release touch sensor is touched | Off | On |
| Except above | Off | Off |
- If it cannot be verified as indicated in the table, replace the touch sensor. (See TOUCH SENSOR REMOVAL/INSTALLATION .)
