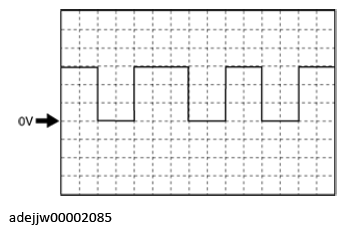

Engine oil control signal
Engine oil control signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1CK (+)-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
