Joint Hose Installation Note

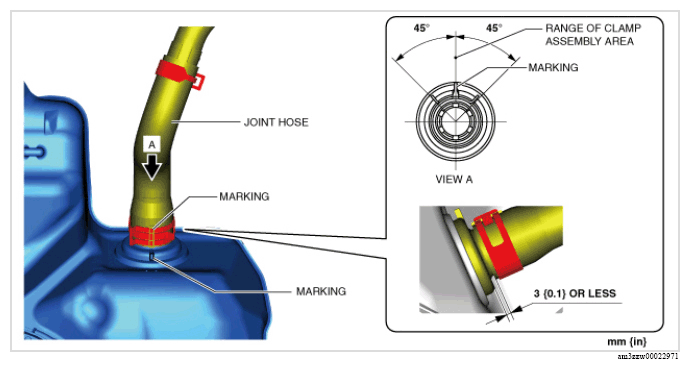

  1. Align the joint hose marking with the pipe marking as shown in the figure and assemble.

    Fuel tank side

    G13174993Courtesy of MAZDA MOTORS CORP.

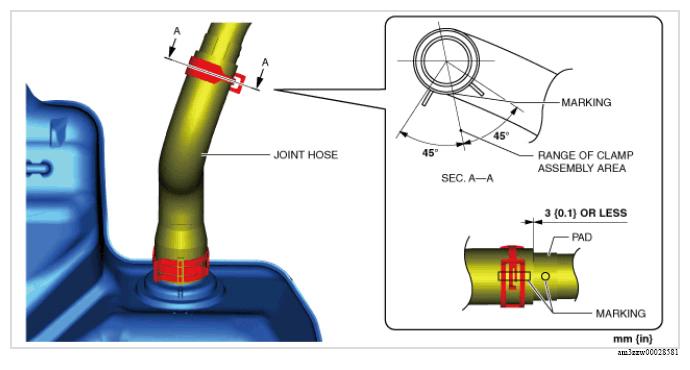

  2. Align the joint hose marking with the fuel-filler pipe marking as shown in the figure and assemble.

Fuel-filler pipe side

G13175082Courtesy of MAZDA MOTORS CORP.
