Drive Plate Removal/Installation: Notes

Special Service Tool (SST)

49 E011 1A0 Ring gear brake set

Courtesy of MAZDA MOTORS CORP.

Replacement Part

1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6AX-EL (US)] .)
2. Remove in the order indicated in the table.

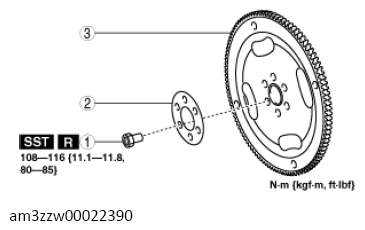

   Fig 1: Drive Plate Components Location With Torque Specification (EV6A-EL, EV6AX-EL)

   Courtesy of MAZDA MOTORS CORP.
   DRIVE PLATE COMPONENT OPERATIONS



   Component No.	Refer to
   1	Drive plate installation bolts (See DRIVE PLATE INSTALLATION BOLTS REMOVAL NOTE .) (See DRIVE PLATE INSTALLATION BOLTS INSTALLATION NOTE .)
   2	Backing plate
   3	Drive plate

3. Install in the reverse order of removal.
