Remote Transmitter Disassembly/Assembly: Disassembly

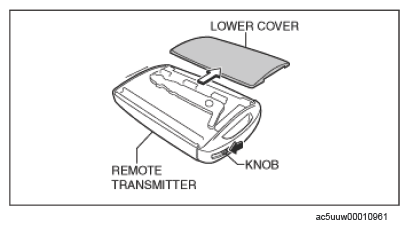

  1. Remove the lower cover while pressing the knob in the direction of the arrow.
    G15642349Courtesy of MAZDA MOTORS CORP.
  2. Press in the tab to unlock the upper cover.
    G15642350Courtesy of MAZDA MOTORS CORP.
  3. Insert a tape-wrapped flathead screwdriver into the gap and slide it in the direction of the arrow.
    G15642351Courtesy of MAZDA MOTORS CORP.
  4. Twist the flathead screwdriver in the direction of the arrow and remove the upper cover.
    G15642352Courtesy of MAZDA MOTORS CORP.

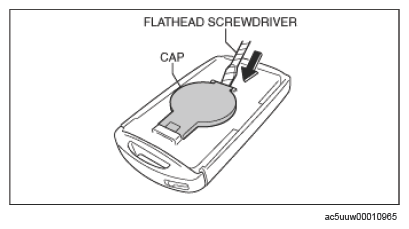

  5. Remove the cap using the tape-wrapped flathead screwdriver.
    G15642353Courtesy of MAZDA MOTORS CORP.

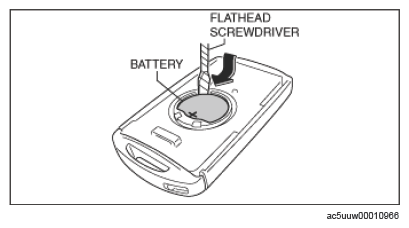

  6. Remove the battery using tape-wrapped flathead screwdriver.
    G15642354Courtesy of MAZDA MOTORS CORP.
