Engine Control System (VIN M)
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›

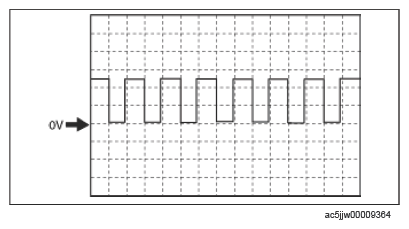

Fuel pump control signal
Fuel pump control signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
2D (+) - body ground (-)
Oscilloscope setting
5 V/DIV (Y), 2 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
