Rear Buckle Removal/Installation

  1. Switch the ignition off.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  4. Disconnect the connectors.

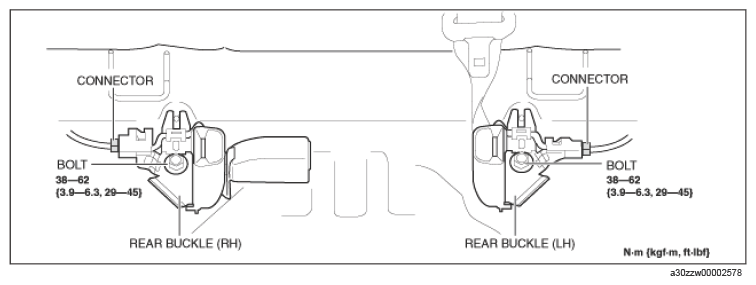

    Fig 1: Rear Buckle, Connector And Bolts With Torque Specifications
    G15750399Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.
  6. Remove the rear buckle.
  7. Install in the reverse order of removal.
