Front Power Window Regulator Removal/Installation
›
Front Power Window Regulator Installation Note
Front Power Window Regulator Installation Note

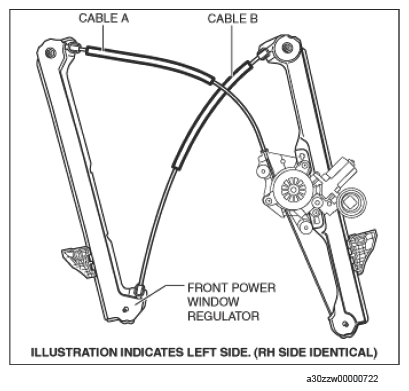

Install the front power window regulator so that cable A is further toward the inside of the vehicle than cable B.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
