Rear Accessory Socket Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Rear accessory socket (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION .)

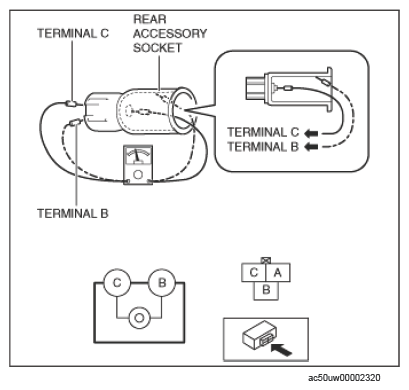

- Connect the tester probe to the position shown in the figure below and verify that there is continuity.
- If it cannot be verified, replace the rear accessory socket. (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION .)
