Active Driving Display Disassembly/Assembly

CAUTION:
  • When disassembling the active driving display, if a strong impact is applied, such as dropping the active driving display, the inside of the active driving display may be damaged and may not operate normally. When disassembling the active driving display, perform the procedure on a workbench and clean cloth being careful not to drop it.

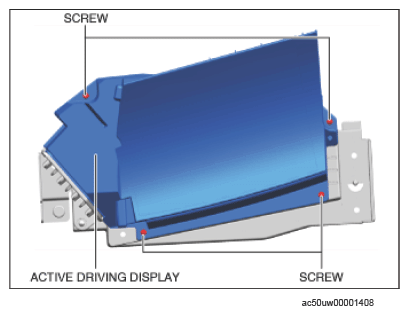

  1. Remove the screws.
    G15743590Courtesy of MAZDA MOTORS CORP.

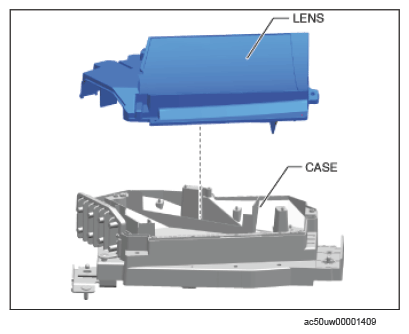

  2. Remove the lens.
    G15743591Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
