Instrument Cluster Disassembly/Assembly

Replacement parts

Lens
Quantity: 1
Location of use: Instrument cluster
CAUTION:
  • If the instrument cluster is hit forcefully during disassembly such as by being dropped, it could get damaged and the system may not operate normally. When disassembling the instrument cluster, perform the procedure on a workbench and clean cloth being careful not to drop it.

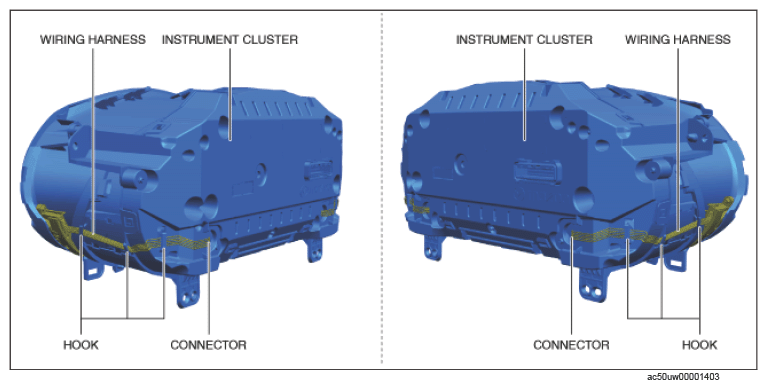

  1. Disconnect the connectors.
    G15743622Courtesy of MAZDA MOTORS CORP.
  2. Remove the wiring harness from the instrument cluster hook.

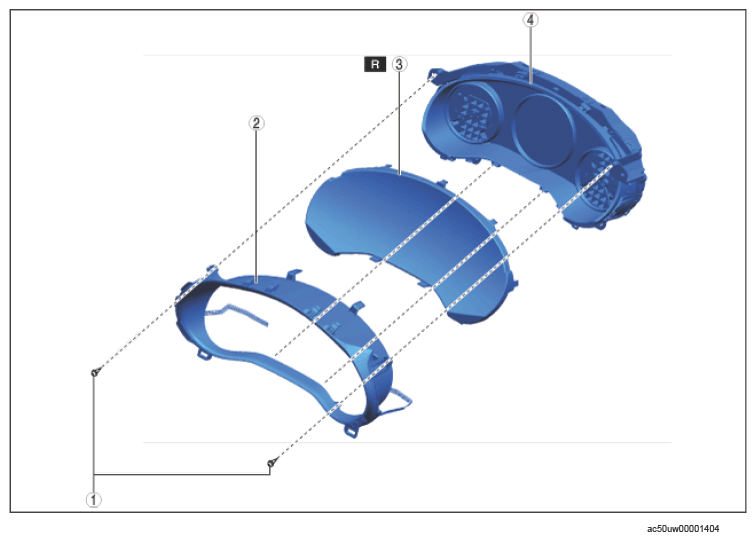

  3. Disassemble in the order shown in the figure below.
    G15743623Courtesy of MAZDA MOTORS CORP.
    INSTRUMENT CLUSTER COMPONENT OPERATIONS

    Component No. Refer to
    1 Screw
    2 Meter cover
    3 Lens
    4 Instrument cluster
  4. Assemble in the reverse order of disassembly.
