Connector Viewing Direction

• The connector viewing direction is indicated by a viewing direction symbol mark.
• The connector viewing direction indication is the same as the indication in the wiring diagram.
• There are three viewing directions as follows.
  • Part-side connector Visually inspect a part side connector from the terminal side.

Courtesy of MAZDA MOTORS CORP.

*: Part names are indicated only if there are multiple connector figures for different parts in the same item

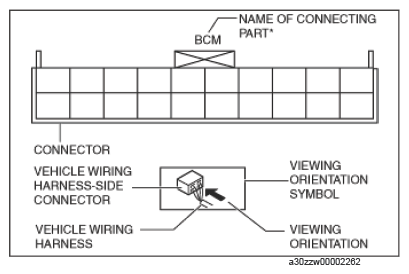

• Vehicle wiring harness side connector Visually inspect vehicle wiring harness side connectors from the wiring harness side.

  Courtesy of MAZDA MOTORS CORP.

• Other In the case of the following connectors that need to be seen from the terminal side in the vehicle wiring harness-side connector, they are seen from the terminal side. *: With the wiring harness-side connector, connecting part names of all connectors are displayed in the figure.
  • Main fuse block and relay in main fuse block
  • Data link connector 2
  • Check connector
  • Relay box

Courtesy of MAZDA MOTORS CORP.

*: Part names are indicated only if there are multiple connector figures for different parts in the same item.
