On-Board Diagnostic - Retractable Fastback Control Module
›

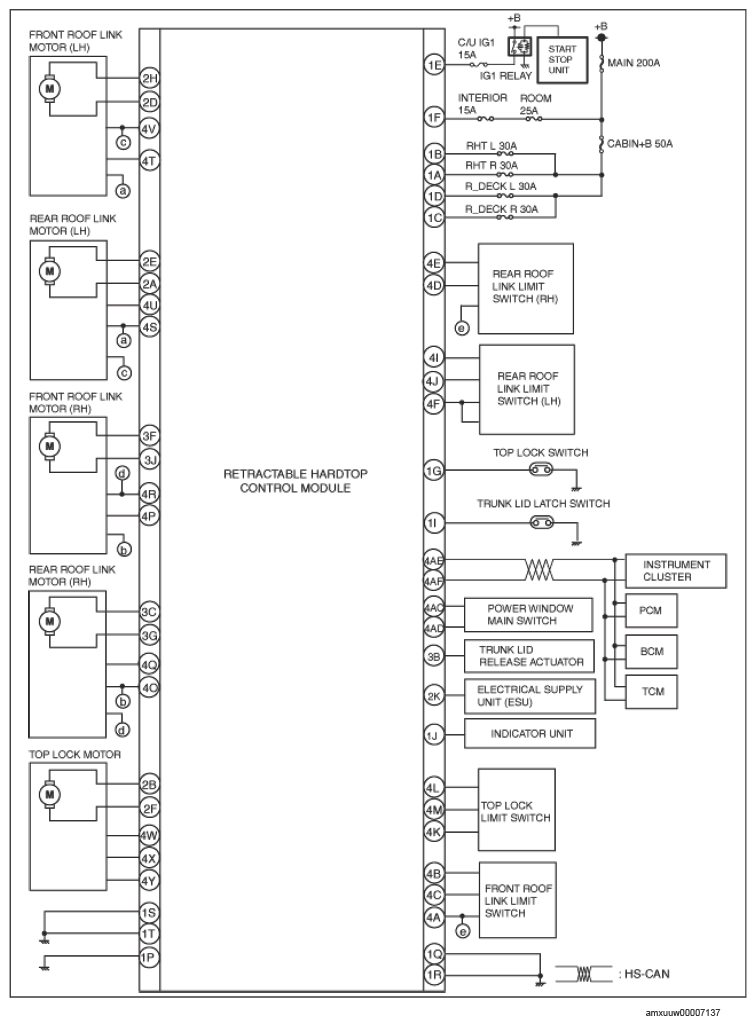

On-Board Diagnostic Wiring Diagram [Retractable Hardtop Control Module]
On-Board Diagnostic Wiring Diagram [Retractable Hardtop Control Module]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
