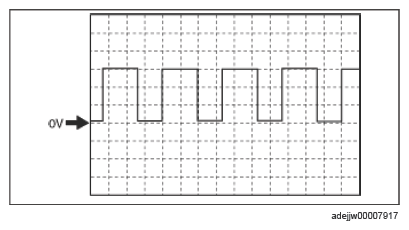

Hydraulic variable valve timing control signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1CO (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Racing (Engine speed: 2, 000 RPM)
