IGT1, IGT2, IGT3, IGT4 control

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• IGT1 (ignition coil No. 1): 1BC (+)-body ground (-)
• IGT2 (ignition coil No. 2): 1BI (+)-body ground (-)
• IGT3 (ignition coil No. 3): 1BO (+)-body ground (-)
• IGT4 (ignition coil No. 4): 1BU (+)-body ground (-)

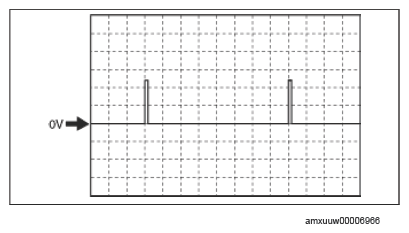

Oscilloscope setting

• 2 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
