Keyless Receiver Removal/Installation: 4SD

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    4. Rear center seat belt anchor (See REAR BUCKLE REMOVAL/INSTALLATION .)
    5. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    6. Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

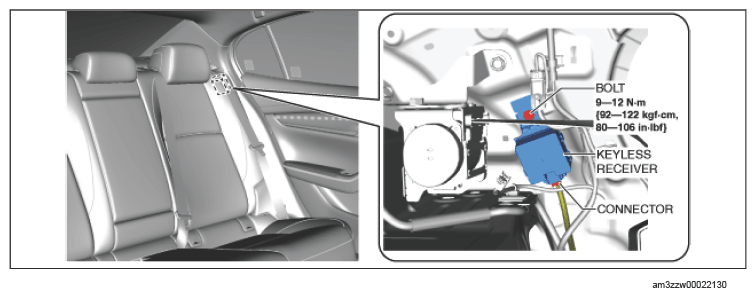

    Fig 1: Keyless Receiver Bolt With Torque Specifications
    G14583575Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.
