Without Position Memory System

  1. Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION .)
  2. Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  3. Perform the following procedure.
    1. Switch the ignition off.
    2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)

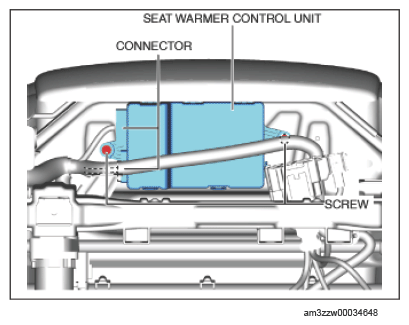

  5. Disconnect the seat warmer control unit connector.
    G14583394Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.
  7. Remove the seat warmer control unit.
  8. Install in the reverse order of removal.
