Windshield Wiper De-ICER Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Disconnect the windshield wiper de-icer connector. (See COWL PANEL REMOVAL/INSTALLATION .)

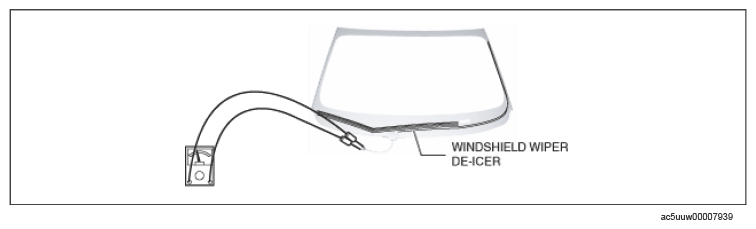

3. Verify that the resistance and continuity between the windshield wiper de-icer terminals is as indicated in the table.

   Courtesy of MAZDA MOTORS CORP.

   • If not as indicated in the table, replace the windshield. (See WINDSHIELD INSTALLATION .)

Courtesy of MAZDA MOTORS CORP.
