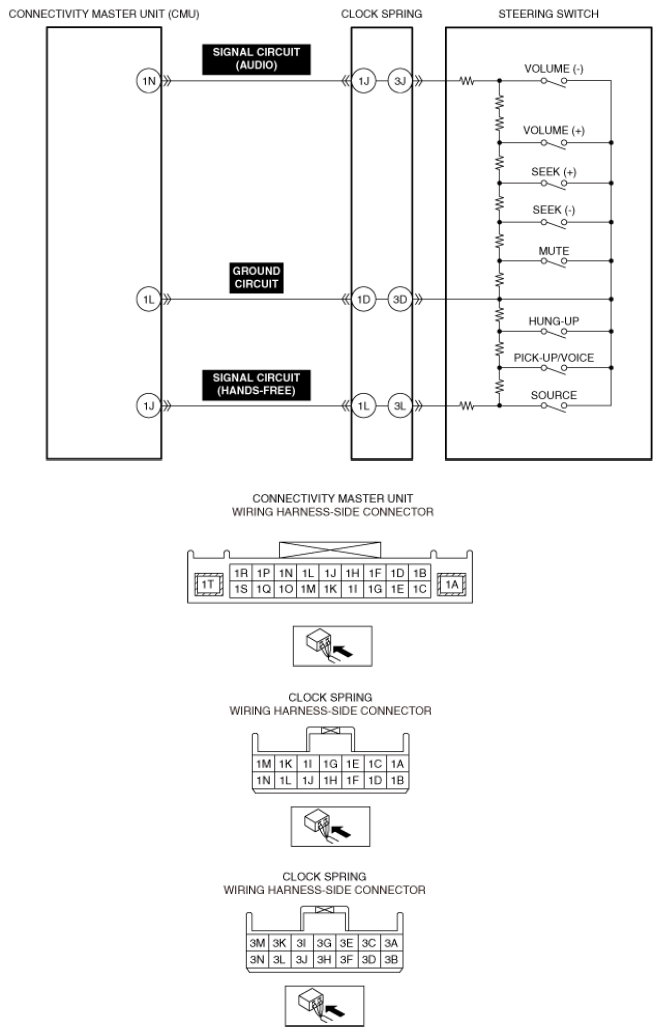

Operation Using Steering Switch Not Possible: Outline
OPERATION USING STEERING SWITCH NOT POSSIBLE CAUSE
| Possible cause |
- Connector or terminal malfunction of the following parts:
- Steering switch
- Clock spring
- Connectivity master unit (CMU)
- Short to power supply, short to ground, or open circuit in steering switch signal circuit
- Steering switch malfunction
- Clock spring malfunction
- Connectivity master unit (CMU) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
