Instrumentation/Driver Info. Location Index: Interior

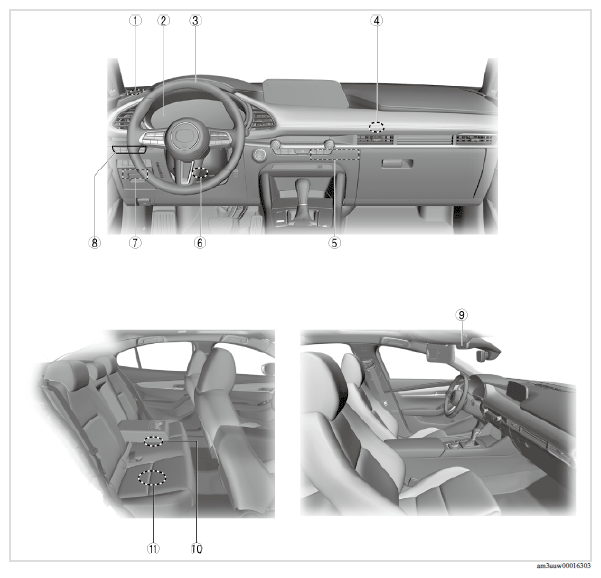

Fig 1: Instrumentation/Driver Info. Components Location (Interior)

Courtesy of MAZDA MOTORS CORP.

INSTRUMENTATION/DRIVER INFO. COMPONENT OPERATIONS

Comment no	Refer to
1	TEL antenna No. 2 (with telematics communication system) (See TEL ANTENNA REMOVAL/INSTALLATION .) (See TEL ANTENNA INSPECTION .)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .)
3	Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
4	TEL antenna No. 1 (with telematics communication system) (See TEL ANTENNA REMOVAL/INSTALLATION .) (See TEL ANTENNA INSPECTION .)
5	Telematics communication unit (with telematics communication system) (See TELEMATICS COMMUNICATION UNIT REMOVAL/INSTALLATION .) (See TELEMATICS COMMUNICATION UNIT INSPECTION .) (See TELEMATICS COMMUNICATION UNIT INITIAL SETTING .) (See ACTIVATING REMOTE CONTROL BY SMART PHONE .) (See TELEMATICS COMMUNICATION UNIT BATTERY REMOVAL/INSTALLATION .) (See TELEMATICS COMMUNICATION UNIT BATTERY RESET PROCEDURE .)
6	Front notification and warning speaker (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION .) (See NOTIFICATION AND WARNING SPEAKER INSPECTION .)
7	Notification and warning amplifier (See NOTIFICATION AND WARNING AMPLIFIER REMOVAL/INSTALLATION .) (See NOTIFICATION AND WARNING AMPLIFIER INSPECTION .)
8	Parking sensor OFF switch (with parking sensor system) (See PARKING SENSOR OFF SWITCH REMOVAL/INSTALLATION .) (See PARKING SENSOR OFF SWITCH INSPECTION .)
9	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .) (See INDICATOR UNIT INSPECTION .)
10	Fuel gauge sender unit (main) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION .) (See FUEL GAUGE SENDER UNIT INSPECTION .)
11	Fuel gauge sender unit (sub) (AWD) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION .) (See FUEL GAUGE SENDER UNIT INSPECTION .)
