Inspection Using An Oscilloscope (Reference)
›

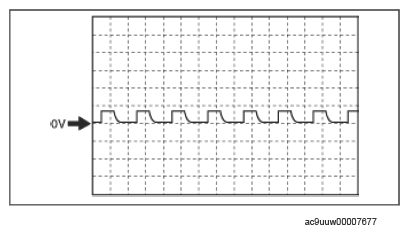

Generator field coil control signal
Generator field coil control signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1BP (+)-body ground (-)
Oscilloscope setting
2 V/DIV (Y), 2 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
Courtesy of MAZDA MOTORS CORP.
